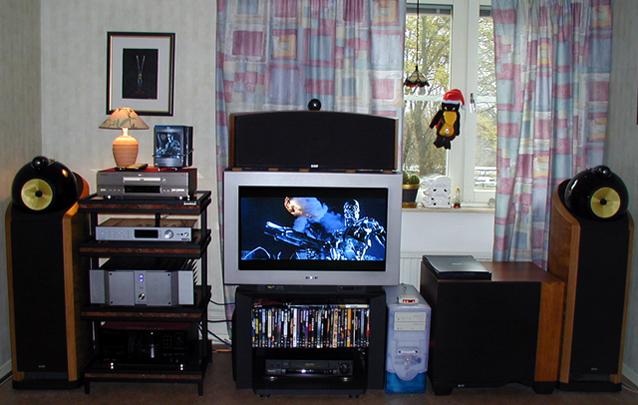

Min anläggning utan den nya Plasma-Tv,n
På bild från vänster, Högtalare B&W Nautilus 802, B&W Nautilus HTM1-Center, B&W ASW-4000 Subwoofer Rack Solid-Tech, DVD Piooner DV-717, Surround-Försteg TagMcLaren AV32R-EX Slutsteg Pass-Labb-X5, CD-Växlare Piooner PD-F 1007 Tv Sony KV-32FD1 Saknas på bild Plasma-Tv, Piooner PDP-435-XDE (2004-11-02 04:55:36)

Produkter på bilden:  B&W Nautilus 802,  B&W Nautilus HTM1,  B&W Nautilus SCM1,  B&W ASW 4000,  Panasonic NV-HD660,  Pass Labs X5

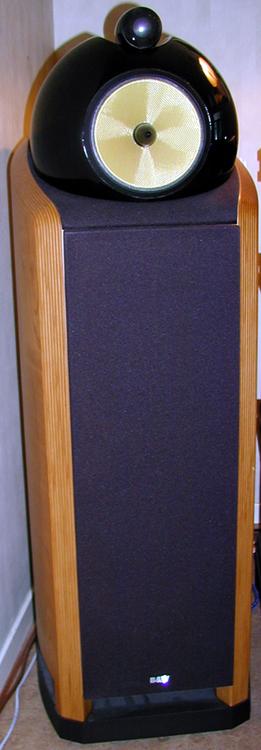

B&W Nautilus 802
Fakta: Description 3-way vented-box system Dimensions Height: 1106mm (43.5 in) Width: 385mm (15.2 in) Depth: 548mm (21.6 in) Net Weight: 70kg/154 lb Freq. Response 39Hz - 20kHz ± 2dB on reference axis Freq. Range -6dB at 27Hz and 30kHz -3dB at 34Hz and 22kHz Sensitivity 91dB spl (2.83V 1m) Normal Impedance 8 ohms (minimum 3 ohms) Power Handling 50 - 500W into 8 ohms on unclipped programme Drive Units Unit 1: 1x 25mm (1 in) metal dome high-frequency Unit 2: 1x 150mm (6 in) woven Kevlar® cone FST midrange Unit 3: 2x 200mm (8 in) paper/Kevlar® cone bass Finish Cabinet: Real wood veneers Black ash, Cherrywood, Red stained cherrywood Grilles: Black cloth Dispersion Description: Within 2dB of response on reference axis Horizontal: over 60° arc Vertical: over 10° arc Harmonic Distortion 2nd and 3rd harmonics (90dB, 1m) <1.0% 50Hz - 20kHz <0.5% 90Hz - 18kHz Crossover Frequency 350Hz and 4kHz Max. Recommended Cable Impedance 0.1 ohms (2004-11-02 07:12:54)

Produkter på bilden:  B&W Nautilus 802

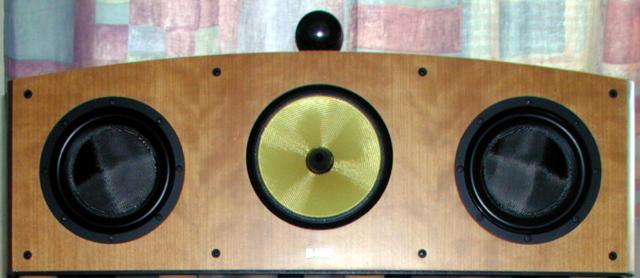

B&W Nautilus HTM1
Fakta: Description 3-way closed box system Dimensions Height: 318mm (12.5 in) Width: 783mm (30.8 in) Depth: 316mm (12.4 in) Net Weight 21kg / 46 lb Freq. Response 49Hz - 20kHz ± 2dB on reference axis Freq. Range -6dB at 35Hz and 30kHz -3dB at 42Hz and 22kHz Sensitivity 90dB spl (2.83V 1m) Normal Impedance 8 ohms (minimum 3 ohms) Power Handling 50 - 250W into 8 ohms on unclipped program material Drive Units Unit 1: 1x 25mm (1 in) metal dome high-frequency Unit 2: 1x 150mm (6 in) woven Kevlar® cone FST midrange Unit 3: 2x 165mm (6.5in) paper/Kevlar® cone bass Finish Cabinet: Real wood veneers Black ash, Cherrywood, Red wood cherrywood Grille: Black Cloth Dispersion Description: Within 2dB of response on reference axis Horizontal: over 60° arc Vertical: over 10° arc Harmonic Distortion 2nd and 3rd harmonics (90dB, 1m) <1.0% 70Hz - 20kHz <0.5% 150Hz - 18kHz Crossover Frequency 350Hz and 4kHz Max. Recommended Cable Impedance 0.1 ohms Länk till B&W,s hemsida http://www.bwspeakers.com/index.cfm/fuseaction/products.models/label/Model%20Nautilus%20HTM1 (2004-11-02 08:13:24)

Produkter på bilden:  B&W Nautilus HTM1

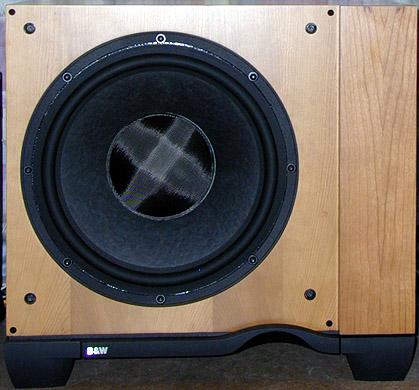

B&W ASW-4000 Subwoofer
Fakta: Active vented box subwoofer system Dimensions Height:580mm Width: 610mm Depth: 600mm Net Weight: 75kg Amplifier: 450Watt Signal/Noise 90db Input Impedance: 22ohms Funktions: Input level phase 0/180 Internal volume: 100 litres Drive units: 1 x 380mm (15in) dia long-throw drive unit with magnetic shielding (2004-11-02 09:59:25)

Produkter på bilden:  B&W ASW 4000

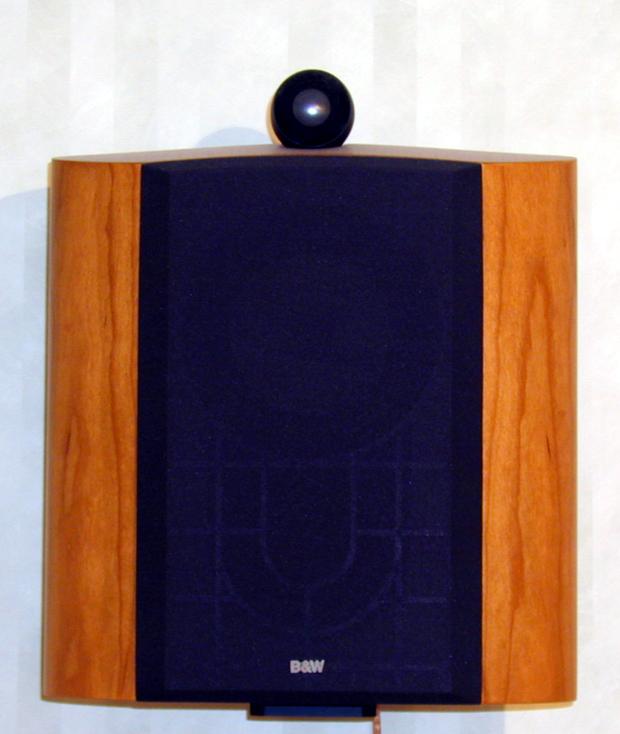

B&W NAUTILUS SCM1 Surround-speaker
Fakta: Description 2-way vented-box system Dimensions Height: 437mm (17.2 in) Width: 372mm (14.7 in) Depth: 167mm (6.6 in) Net Weight 8kg/17.6 lb Freq. Response 80Hz - 20kHz ± 2dB on reference axis Freq. Range -6dB at 50Hz and 30kHz -3dB at 70Hz and 22kHz Sensitivity 89dB spl (2.83V 1m) Normal Impedance 8 ohms (minimum 4.7 ohms) Power Handling 50 - 120W into 8 ohms on unclipped programme Drive Units Unit 1: 1x 25mm (1 in) metal dome high-frequency Unit 2: 1x 165mm (6.5 in) woven Kevlar® cone bass/midrange Finish Cabinet: Real wood veneers Black ash, Cherrywood, Red stained cherrywood Grille: Black cloth Dispersion Description: Within 2dB of response on reference axis Horizontal: over 40° arc Vertical: over 10° arc Harmonic Distortion 2nd and 3rd harmonics (90dB, 1m) <1.0% 100Hz - 20kHz <0.5% 200Hz - 18kHz Crossover Frequency 4kHz Max. Recommended Cable Impedance 0.1 ohms (2004-11-02 19:04:17)

Produkter på bilden:  B&W Nautilus SCM1

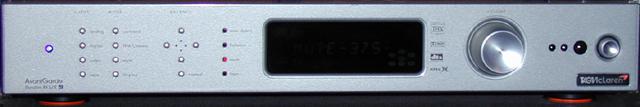

Surround-Försteg TagMcLaren AV32R-EX
Länk till TagMcLaren http://www.iaguk.com/tma/index.htm (2004-11-03 03:50:53)

Produkter på bilden:  TAG McLaren AV 32 R

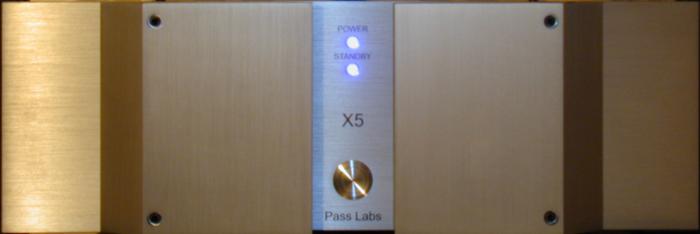

Pass Labs X5
Fakta: All figures obtained after 1 hour warmup, with regulated 120 VAC power line. See manual notes about AC power line regulation. Gain 30 dB Freq. Response -0 dB at DC, -3 dB at 100 kHz Power Output 125 X 5 watts maximum @ 1% THD, 1 kHz, 8 ohms Distortion refer to accompanying distortion curve Maximum Output Voltage plus, minus 50 volts Maximum Output Current plus, minus 10 amps Input Impedance 22 kohm balanced Damping factor 200 ref 8 ohms nominal Slew rate plus, minus 50 V/uS Output Noise 300 uV unweighted 20-20 kHz Random noise floor approximately 2 uV Dynamic range 140 dB (random noise floor to peak output) Balanced CMRR -85 dB @ 1 kHz (input common mode rejection ratio) DC offset < 100 mv Power Consumption 200 watts idle, 600 watts maximum Temperature 20 degrees C. above ambient typical Dimensions 19 " W x 20" D x 6.5" H Shipping Weight 85 lbs. Länk: Pass Labs http://www.passlabs.com/ (2004-11-03 19:06:01)

Produkter på bilden:

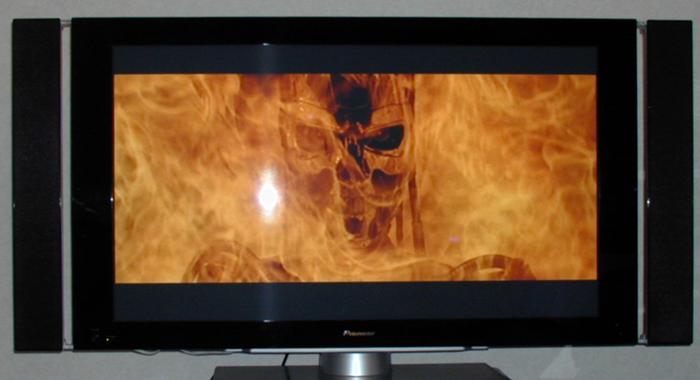

PIOONER PDP-435XDE
Skärmen är monterad på bords-stativ på bilden. Väntar på de nya väggfästena som inte släpps från Piooner (Sverige) förens då de sålt slut på fjol-årets väggfästen. Beställde det nya fästet, men fick det gamla som de tar ca: 1000 kr mer för. Fy Piooner. (Som att köpa sur gammal mjölk 30% dyrare när det finns nytt påfyllt i hyllan bakom) (2004-11-04 12:46:22)

Produkter på bilden:  Pioneer PDP-435XDE

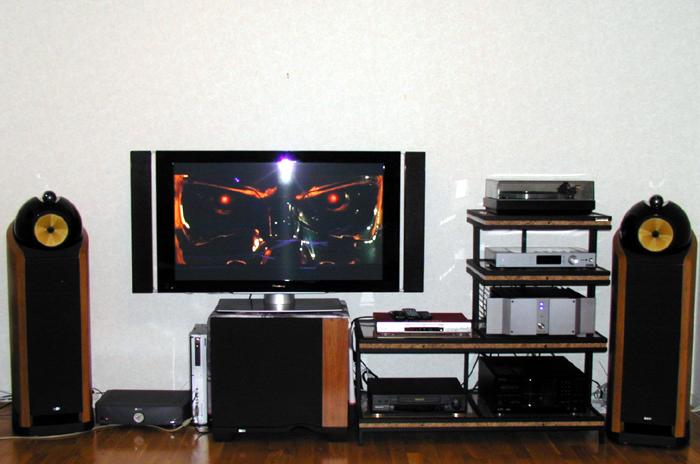

Min anläggning senaste uppdate
Väntar på väggfästet till Plasman (2004-11-04 14:22:36)

Produkter på bilden:  Pioneer PD-F1007,  Pioneer DV-464,  B&W Nautilus 802,  TAG McLaren AV 32 R,  B&W ASW 4000,  Pioneer PDP-435XDE,  Thorens TD 320,  Panasonic NV-HD660,  Pass Labs X5,  Philips VR-969
